Narrative review of bilirubin measurement and binding

Introduction

The primary goal of the evaluation and management of unconjugated hyperbilirubinemia in premature and term infants is to prevent bilirubin-induced neurological dysfunction (BIND), a spectrum of neurodevelopmental disorders, including but not limited to central apnea, auditory disorders, communication and language disorders, autism, attention deficit hyperactivity disorder (ADHD), upward gaze palsy, and athetoid cerebral palsy (1). To-date, total serum bilirubin (TSB) concentration remains the primary bilirubin biochemical measure used to evaluate and manage unconjugated hyperbilirubinemia in premature and term infants. However, the current TSB threshold for phototherapy and/or exchange transfusion is a poor predictor of BIND (2-8). This is not surprising because of the complex underlying pathogenesis of BIND (9). Most importantly, bilirubin-albumin binding limits the use of TSB as an indicator of the amount of bilirubin in vascular and extravascular space, the magnitude of ongoing bilirubin production/excretion mismatch, and the overall risk of bilirubin toxicity. This is supported by mounting evidence in the literature that non-albumin bound (unbound), also known as free bilirubin (B_f), resulting from altered bilirubin-albumin binding is a more sensitive and specific biochemical measure of acute and chronic bilirubin-induced neurotoxicity than TSB in preterm and term infants. Thus, measurement of bilirubin and bilirubin binding are critical for the assessment of the risk of BIND. Our objectives for this narrative review are to: (I) provide current literature on bilirubin and bilirubin binding in premature and term infants with unconjugated hyperbilirubinemia and (II) inform promising newer technologies currently in development as point-of-care (POC) methods for bilirubin and binding measurement.

I present the following article in accordance with the Narrative Review reporting checklist (available at https://dx.doi.org/10.21037/pm-21-15).

Methods

In order to assimilate literature and synthesize key findings for the objectives of this narrative review, we searched published literature in the English language using PubMed with the following keywords: bilirubin, bilirubin-albumin binding affinity, structure, properties, bilirubin binding capacity, unbound bilirubin, free bilirubin, TSB, bilirubin albumin molar ratio (BAMR), BIND, kernicterus, technologies, methods, neonates, and infants. We also considered abstracts of clinical studies presented at the Pediatric Academic Society Meeting in the past 15 years.

Discussion

Bilirubin and bilirubin binding

Properties of bilirubin and bilirubin binding to albumin

Bilirubin binding to albumin is based on the properties of bilirubin and albumin. The native form of unconjugated bilirubin (a 4Z, 15Z-IXα isomer) has two rigid dipyrrole units internally hydrogen bonded to each other so that no ionizable groups are exposed, allowing it to be almost insoluble in water and form harmful dimers and higher aggregates (10,11) (see Figure 1). The solubility of unconjugated bilirubin increases with increasing pH due to ionization of the acidic groups on its molecule (13,14). The hydrophobic native form of unbound, unconjugated bilirubin (a 4Z, 15Z-IXα isomer) can readily cross biomembranes and is neurotoxic (15,16). It is not yet known if other isomers of bilirubin are neurotoxic (12).

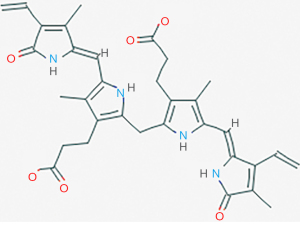

Figure 1 Molecular structure of bilirubin (12).

Bilirubin-albumin binding capacity and affinity

Bilirubin, a product of hemoglobin degradation, exists in the blood mostly bound to albumin. Bilirubin-albumin binding depends on the concentrations of bilirubin and albumin, as well as the binding affinity for bilirubin. When bound, bilirubin is unable to cross the intact blood-brain barrier to cause BIND (2,17).

Albumin is a highly abundant serum protein and allows the transport of bilirubin to the liver where bilirubin dissociates from albumin and is conjugated by the hepatic cells. There are at least two types of binding sites for bilirubin on albumin. The strongest and most specific site has a very high binding affinity for bilirubin, approximately 1.4×10⁷ mol/L at 37 °C. Secondary sites have at least a ten-fold lower binding affinity for bilirubin (11,18,19).

The fraction of free or unbound bilirubin (B_f) significantly increases as the TSB concentration exceeds the binding capacity of albumin or when bilirubin-albumin binding affinity decreases (10). There are several factors that may decrease the binding affinity of albumin to bilirubin, including increasing temperature, sepsis, acidosis, hypoxia, hypothermia, free fatty acids (FFA) or albumin binding drugs (2,10,20,21).

Strong experimental evidence suggests that due to both the abundance of albumin and its high affinity for bilirubin, the level of B_f in the serum is largely controlled by the albumin binding capacity in healthy neonates (10,19,22). The bilirubin binding capacity at the high affinity binding site can be represented by the following equilibrium equation:

Albumin(R)+FreeBilirubin(Bf)⇄AlbuminBoundBilirubin(B)[1]

R denotes the concentration of albumin with vacant high-affinity sites and B denotes the concentration of albumin with bilirubin bound to high-affinity albumin sites. The total amount of albumin available to strongly bind bilirubin (R + B) at the high affinity binding site constitutes the bilirubin binding capacity, or C. One major limitation is that the relationship does not account for bilirubin binding to low affinity sites. Several different techniques were used in the past to measure total and reserve bilirubin binding capacity and provide an indirect measurement of B_f, but each technique has limitations (17). Of note, there are no tests for determining total bilirubin binding capacity (the total bilirubin level at which all plasma bilirubin binding sites are occupied) (17,23).

Bilirubin-albumin binding is a reversible and dynamic process in which bilirubin is continuously binding onto and dissociating off of albumin at normal serum pH and temperature (24,25). When there is poor bilirubin binding, elevated B_f exits into the tissues, including the central nervous system, at a rate that is proportional to the serum B_f concentration. The likelihood of BIND increases with increasing Bf concentrations in and around cells of the central nervous system. As bilirubin exits the vascular system and enters the tissues, more bilirubin is dissociating from the albumin bound pool present in the vascular system. The relationship between serum B_f, TSB, and albumin concentrations is explained by the law of mass action and is characterized by an affinity or binding constant, K, as shown in Eq. [2]:

K=(TSB−Bf)/Bf(Albumin−TSB+Bf)[2]

The law of mass action equation clearly indicates that B_f is inversely proportional to albumin and its intrinsic ability to bind bilirubin (K), as shown in Eq. [3]

Bf=TSB−Bf/K(Albumin−TSB+Bf)[3]

It also underscores the significance of evaluating bilirubin-albumin binding in addition to TSB to estimate B_f and indirectly determine the risk for BIND (25). This can be further explained by considering the changes in unconjugated bilirubin load (imbalance with bilirubin production and elimination) with or without changes in K or albumin concentration. The imbalance between unconjugated bilirubin production and elimination at constant albumin concentration and K will increase TSB. However, once the albumin is saturated with unconjugated bilirubin, the incremental increase in TSB with increasing bilirubin load decreases, while the incremental increase in B_f will accelerate (25). Thus, an increased but stable TSB should not be considered safe. Alternatively, increases in albumin concentration and K at constant unconjugated bilirubin production and elimination will increase TSB (mainly bound bilirubin), but not B_f and the risk of BIND. Thus, variations in albumin concentration and K undermine the ability of TSB but not that of Bf to predict BIND (25).

A bilirubin binding panel (BBP) has recently been proposed to measure bilirubin binding in neonates and to generate B_f population parameters for threshold TSB at which phototherapy and/or exchange transfusion is indicated (26). For the BBP, two empiric constants: maximum TSB (TSB_max) and its corresponding equilibrium association constant (K) are required in addition to TSB and B_f. TSB_max is an empirical mass action upper limit of TSB in a sample that is used with K to calculate B_f at any TSB < TSB_max {Eq. [3]}. TSB_max and K are necessary to calculate B_f at the threshold TSB level since the TSB of a sample is rarely the threshold TSB. Additionally, TSB is the bound bilirubin concentration because B_f is orders of magnitude less than TSB (µg/dL versus mg/dL) and bound bilirubin = TSB – B_f ≅ TSB. Unoccupied binding sites, or R, in the derivation of Eq. [2] equals TSB_max – TSB. Therefore, K {described above in Eq. [2]} is as follows:

K=TSB/(Bf×TSBmax−TSB)[4]

TSB_max is a new variable introduced to eliminate the misconception that only the high affinity binding site is clinically relevant in bilirubin binding. Both bilirubin binding sites are clinically relevant as was confirmed in a recent study (27). An empirical TSB_max can readily be obtained from TSB and B_f measured before and after sample bilirubin enrichment. Enriching samples with bilirubin to TSB above the relevant TSB thresholds and re-measuring TSB and B_f to obtain TSB_max and K for accurate estimates of B_f at threshold TSB < TSB_max requires a small sample volume. Once B_f population parameters are derived, the BBP can be used to help determine how best to manage a neonate that has reached a consensus-based TSB threshold for phototherapy and/or exchange transfusion (27).For example, a 29-week GA infant has a phototherapy TSB threshold of 8 mg/dL. Assume the median B_f for the population at TSB =8 mg/dL is 0.60 µg/dL with the 25^th percentile 0.45 µg/dL and 75^th percentile 0.75 µg/dL. If the infant’s B_f is >0.60 µg/dL phototherapy is indicated, but if it is >0.75 µg/dL there is significant concern for an increased risk of BIND as binding is relatively poor compared to other infants at this gestational age (GA). Once available, the clinical use of bilirubin binding may improve existing clinical practice involving consensus-based TSB thresholds for management of hyperbilirubinemia.

Bilirubin-albumin binding as a function of gestational age and postnatal age

Bilirubin binding has been studied as a function of gestational and postnatal age using different methods. During the first postnatal week, premature infants are at increased risk of BIND at lower concentrations of TSB than term infants (2,10). The serum albumin levels and bilirubin binding capacity (BBC) is lower in premature infants compared to their term counterparts (10,28-30) and partly explains the increased risk of BIND. Cashore et al. reported that the BBC remains unchanged during the first ten days of life in both healthy term and preterm infants using the Sephadex method, but the BBC is highly variable in all sick infants (30). In a recent study, blood samples taken at five days of life demonstrated that the BBC at a high-affinity binding site improves with increasing GA in <31 weeks GA infants. However, these findings were based on a single peroxidase concentration with several assumptions made about the binding of bilirubin to albumin (23,31). Similar findings were recently reported by Lamola et al., who found a positive correlation between GA and BBC measured by two different types of the hematofluorometric instrument (which assumes a single non-interactive, high-affinity binding site on albumin) in three different cohorts of preterm and term infants (32). The BBC increased by 1 mg/dL/week with increasing GA at the high affinity binding sites (32).

The literature on bilirubin binding affinity (K) is scant. One large prospective study, using the modified peroxidase method, found that in premature infants ≤30 weeks GA, the bilirubin binding affinity was variable, but showed an overall decrease during the first week of life and was primarily responsible for elevated B_f in premature infants ≤30 weeks GA (33). Additionally, due to an uncoupling relationship between B_f and TSB, as TSB decreases with phototherapy, B_f increases in premature infants ≤30 weeks GA (33). This phenomenon is highly indicative of risk factors such as sepsis, acidosis, hypothermia, hypoxia, or bilirubin displacers such as FFA and albumin binding drugs (2,20,21,33). Contrastingly, in premature infants >30 weeks GA, the binding affinity gradually improves with postnatal age during the first postnatal week. In term infants, binding affinity measured indirectly using the Sephadex gel filtration method increases as early as the third postnatal day of life and continues to increase, reaching adult serum levels by five months of age (34). The improvement in binding affinity is thought to be due to maturational changes in the ability of albumin to bind bilirubin with increasing postnatal age.

Clinical risk factors associated with bilirubin-albumin binding

The risk factors that are thought to increase bilirubin-induced neurotoxicity occur either through the disruption of bilirubin-albumin binding and/or by facilitation of B_f entry into the brain (2), see Table 1. For example, Cashore et al. found that reserve albumin concentration determined by dialysis with 14C-monoacetyldiaminodiphenylsulfone was decreased and the bilirubin toxicity index was increased in the presence of clinical risk factors such as acidosis, hypoxia, or sepsis, increasing the risk of BIND (35). Meisel et al. evaluated how acid-base status influences bilirubin-albumin binding in low birthweight infants between three to eight days of life. They found a significant correlation between metabolic acidosis and the bilirubin to albumin reserve ratio as well as the bilirubin toxicity index (28). Additionally, shifting to a metabolic acidosis state (with a base deficit of 10) showed a decrease in bilirubin-albumin binding and doubled the toxic potential of B_f (28). Alternatively, Kozuki et al. found that correcting metabolic acidosis during the first day of life in late preterm infants resulted in an improvement of the bilirubin-albumin binding affinity and decreased levels of B_f (36).

Neonatal sepsis causes both a decrease in albumin production and an increase in FFA concentration, a known displacer of bilirubin, although the mechanism remains unclear. These factors are thought to disrupt bilirubin-albumin binding (10,37,38). Both hypoxia and hypothermia can also cause an increase in FFA concentration. One small prospective study involving preterm infants showed that prolonged hypoxia, hypothermia, and acidosis occurring prior to the peak of B_f levels significantly increased the risk of BIND (39).

Although some evidence can be derived from these observational studies about the roles that clinical risk factors play in the pathogenesis of BIND more studies are needed to confirm. Overall, many experts would recommend aggressive management and treatment of hyperbilirubinemia in the presence of one or more clinical risk factor (Table 1).

Exogenous drugs and how it affects bilirubin-albumin binding

Several therapeutic drugs and preservatives used in their preparation have been shown to displace bilirubin from albumin binding sites. The most well-known potent bilirubin displacers include sulfa drugs, ceftriaxone, and ibuprofen (2). These drugs should be avoided as long as there is a risk for bilirubin-induced neurotoxicity in premature and term infants (2). With regards to Ibuprofen, the evidence suggests that in premature infants clinically significant displacement is unlikely if intravenous (IV) ibuprofen is used at the recommended dosage (such as for the treatment of a patent ductus arteriosus) after the first two postnatal days and with a bilirubin to albumin molar ratio (BAMR) <0.5. Caution should be taken when using IV ibuprofen in those infants with a BAMR >0.5 and during the first two postnatal days when the plasma levels of ibuprofen may be higher (40-46). Ceftriaxone use has been cautioned against in the presence of unconjugated hyperbilirubinemia because of its potential for displacing bilirubin from albumin resulting in elevated free bilirubin concentration (47,48). However, in a recent clinical trial, IV ceftriaxone was not associated with bilirubin displacing effects in term infants with mild unconjugated hyperbilirubinemia (TSB ≤10 mg/dL) during the first postnatal week (49); however, it should be avoided in term infants with TSB >10 mg/dL.

Additionally, almost all premature infants receive total parenteral nutrition in the first several days of life, including addition of intravenous lipid (IL). IL intake in premature infants may result in elevated levels of FFA and the clearance of FFA is slower in premature infants compared to their term counterparts. This is important because FFA can bind to albumin at three different sites, one of which is the high affinity binding site that bilirubin uses to bind albumin. When the FFA to albumin molar ratio is greater than or equal to 4:1, FFA competes with bilirubin resulting in displacement of bilirubin from albumin and increased levels of B_f in the serum. The current evidence suggests that only infants who are ≤28 weeks GA during the first post-natal week of life are affected by this decrease in bilirubin-albumin binding affinity caused by IL intake (50-52). Therefore, IL intake should be limited in these extremely premature infants during the first post-natal week of life when unconjugated hyperbilirubinemia is most common (32,50-53).

Association of BAMR with bind

The consensus-based guidelines for the management of hyperbilirubinemia in term and preterm infants recommend measuring serum albumin. The utility of this is based on existing evidence, especially in the absence of clinical methods for bilirubin binding measurement. Scheidt et al. reported no significant association of TSB or BAMR with neurodevelopmental outcomes, including cerebral palsy and intellectual disability, after controlling for neonatal risk factors (3). Similarly, Cashore et al. in a small retrospective study involving premature infants reported no significant association between TSB or BAMR and autopsy proven kernicterus (35). However, most others have reported the possible usefulness of BAMR in premature infants. Kim et al. and Ritter et al. independently reported that calculated peak BAMR was higher in infants with kernicterus compared to those without kernicterus (39,54). Amin et al. demonstrated that peak BAMR, but not peak TSB, was significantly higher in infants with abnormal auditory brainstem response (ABR) maturation compared to infants with normal ABR maturation in a subset of forty-five premature infants in whom B_f was measured (55).

A multicenter randomized trial in the Netherlands found that the use of BAMR in addition to TSB was associated with reduction in mortality compared to TSB alone in a subgroup of infants with a birth weight >1,000 g (56).A case series of five sick premature infants who were demonstrated to have MRI findings of kernicterus with peak TSB concentrations ranging from 8.7 to 11.9 mg/dL but with relatively low serum albumin concentrations ranging from 1.4 to 2.1 g/dL (BAMR >0.47) further emphasizes the importance of measurement of BAMR in premature infants (57). Furthermore, in late preterm and term infants, BAMR was a better predictor than TSB of bilirubin-induced auditory toxicity (58). Overall, the limited evidence favors measurement of serum albumin and BAMR in addition to TSB for the management of unconjugated hyperbilirubinemia in premature and term infants.

Association of bilirubin binding and free bilirubin with BIND

Both indirect and direct methods of B_f measurement have been used to evaluate an association of B_f with BIND. In earlier studies, indirect methods, such as the Sephadex gel filtration method for bilirubin binding capacity, dye binding method for reserve binding capacity, and salicylate saturation index for bilirubin binding affinity, were used (17). Using indirect method, significant association was reported between low bilirubin reserve binding capacity and abnormal communication and language skills at age seven in 30–41 weeks GA infants with unconjugated hyperbilirubinemia (59).

Cashore et al. reported higher B_f concentrations measured using the peroxidase method on five premature infants with autopsy proven kernicterus compared to eight premature infants without kernicterus (35) (Table 2). Similarly, Ritter et al. reported a higher B_f concentration in seven infants with kernicterus compared to twenty-three infants without kernicterus in a prospective study (39) (Table 2).Several studies have recently corroborated the usefulness of B_f as a predictor of BIND in premature and term infants using the modified peroxidase method (55,58,60-66). Nakamura et al. in a prospective study reported that both peak TSB and peak B_f were significantly higher in infants with kernicterus compared to those without kernicterus (60).

In recent longitudinal studies involving late preterm and term infants with severe jaundice, peak B_f, but not peak TSB, was shown to be associated with acute and chronic bilirubin-induced auditory toxicity (58,62,63) (Table 2). Amin et al. in a small prospective study involving 45, 28–32 weeks GA infants reported that peak B_f, but not peak TSB, was significantly higher in infants with abnormal ABR maturation compared to infants with normal ABR maturation (55). In addition, in a retrospective study, premature infants with abnormal ABR maturation had more concurrent apnea and bradycardia and required more prolonged respiratory support and methylxanthine therapy (64). This was corroborated in a prospective study which demonstrated that central apnea, a manifestation of bilirubin-induced brainstem dysfunction, was more closely associated with serum B_f levels than TSB in premature infants (65). Ahlfors et al. in a retrospective study involving 24–42 weeks GA infants reported that B_f (odds ratio 3.3, 95% CI: 1.8 to 6.1) and not TSB (odds ratio 1.04, 95% CI: 0.94 to 1.16) was strongly associated with abnormal automated ABR screening tests performed prior to discharge (61). In another longitudinal study, an increasing serum B_f level measured once at approximately five days of life using the peroxidase method in extremely low birth weight infants was associated with a higher risk of death or adverse neurodevelopmental outcomes irrespective of clinical status (66). In summary, there is ample evidence to support the importance of B_f measurement in premature and term infants.

Methods of bilirubin measurement

Total bilirubin determination

Of newborns, greater than eighty percent develop visual jaundice in the first few days of life. Bilirubin levels typically peak in neonates at approximately ninety-six hours of life long after most infants are discharged home. The American Academy of Pediatrics (AAP) recommends that infants discharged before 72hours of life should be seen by a healthcare provider within the next 48 to 70 hours post-discharge to assess for jaundice. It is also routine practice for all infants to have their bilirubin measured prior to hospital discharge. Ample evidence suggests that even experienced health care providers cannot accurately estimate the severity of jaundice based purely on visual assessment (67), therefore objective methods are recommended for bilirubin measurement. Below are available methods for measuring bilirubin.

Total serum/plasma bilirubin measurement

Bilirubin can be measured in body fluids by a variety of analytical methods including high performance liquid chromatography (HPLC), enzymatic methods (bilirubin oxidase, vanadate oxidase methods), electrophoresis, and direct spectrophotometry (68). HPLC, which effects separation and quantitation of the four bilirubin fractions, is the gold standard method of choice, but not easily available for routine use. Clinical chemistry laboratories typically utilize automated clinical chemistry assays. The diazo method, originally developed by Ehrlich in 1883, is the most widely used method for measurement of different forms of bilirubin. Conjugated bilirubin reacts directly with the diazo reagent (thus the designation of conjugated bilirubin as “directly reacting” or “direct” bilirubin). In the automated diazo method, serum or plasma is incubated with diazo reagent at an acidic pH of approximately 2.0 to form a diazonium salt. The resulting product reacts with bilirubin to form isomers of azobilirubin. In direct bilirubin assays, the conjugated bilirubin is the predominant form converted by the diazotized sulfanilic acid (68). However, approximately 5% of unconjugated bilirubin may react as well which could obscure the clinical diagnosis. The intensity of the red color of azobilirubin is measured photometrically at approximately 600 nm and is proportional to the direct bilirubin concentration. Unconjugated bilirubin reacts with diazo reagents with the addition of caffeine, sodium benzoate, or methanol, thus allowing for the determination of the TSB concentration. The difference between TSB concentration and direct bilirubin concentration allows for the estimation of the unconjugated bilirubin concentration or “indirect” bilirubin.

The automated diazo methods are inexpensive, but they have limitations, including interference by low levels of hemolysis and by lipemia or paraproteins. Additionally, interlaboratory variability of bilirubin measurements has been reported by Vreman and van Imhoff et al. (69,70). The accurate and precise measurement of total bilirubin is critical in the evaluation and management of neonatal jaundice. The availability of a Standard Reference Method (SRM) for bilirubin and reliable calibrators has improved the precision and accuracy of TSB measurement by analytic methods. It also compares the results against those obtained by the reference method. To maintain high standards, the performance of laboratories participating in the CAP Neonatal Bilirubin Surveys is graded on the basis of results obtained by the reference method (71).

Transcutaneous bilirubin (TcB) measurement

As an alternative to TSB, TcB measurement is widely used as a screening tool for neonatal jaundice. It was first developed in the early 1980’s to measure total bilirubin levels and minimize the inconvenience of frequent blood draws, which are associated with pain, infection and anemia, especially for premature infants. The equipment used was initially developed to correlate with the intensity of the yellow skin color. However, many factors were found to interfere with the accuracy of this measurement including levels of melanin, hemoglobin, and connective tissue (72). Over the past 20 years, a new generation of devices has been produced to measure TcB levels. These new devices are based on microspectrophotometry, allowing the optical density of bilirubin to be measured more accurately while excluding factors that interfere with bilirubin measurement (73). With this technique, a good correlation between transcutaneous and serum bilirubin has been appreciated even in multiracial populations (74). TcB measurements are most often done in the in-patient setting, prior to hospital discharge in near term and term infants. Several factors influence TcB measurements including GA, postnatal age, skin color/ethnicity, measurement site, TcB devices and their algorithm (75-78).

In term infants, several studies have shown good correlation between TcB and TSB levels prior to the initiation of phototherapy. Based on this evidence, the AAP recommends the use of TcB devices for the screening of jaundice in ≥35 weeks GA infants (79). The caveat is that TcB underestimates TSB at TSB ≥15 mg/dL and in newborns with birth weights <2,500 g during the first 48 hours after birth. This is particularly important as failing to identify a newborn with significant hyperbilirubinemia could lead to a delay in the initiation of appropriate evaluation and management (80,81). There are also some concerns about the usefulness of TcB during phototherapy. In a recent meta-analysis of fourteen studies to evaluate the effect of phototherapy on the reliability of TcB devices in near term and term infants, the pooled estimates of correlation coefficients (r) during phototherapy were: covered sites 0.71 (95% CI: 0.64–0.77), uncovered sites 0.65 (95% CI: 0.55–0.74), forehead 0.70 (95% CI: 0.64–0.75) and sternum 0.64 (95% CI: 0.43–0.77), suggesting a moderate correlation between TcB and TSB during phototherapy (82).

In premature infants, several studies have reported a good correlation but an underestimation of TSB by TcB measurements taken on the forehead, sternum, abdomen or hip bone. A recent comprehensive meta-analysis including twenty-eight studies reported pooled estimates of r=0.82 (95% CI: 0.78–0.85) in random effect and r=0.803 (95% CI: 0.78–0.81) in fixed effect models (83). The study reported that the forehead and sternum were comparable with r=0.82 (95% CI: 0.78–0.85) and that the estimated pooled r of 0.83 was also comparable between two devices, JM103^® and Bilicheck^® (83). The correlation between TSB and TcB levels is significantly weaker for TcB measurements on uncovered skin compared to covered skin. Hulzebos et al., found that TcB levels measured using a JM-103^® instrument on covered hipbones of infants <32 weeks GA before, during, and after phototherapy showed a good correlation and agreement with TSB levels. Their data also showed that TcB persistently underestimated the TSB level and that phototherapy further affected this underestimation up to forty-eight hours after phototherapy was discontinued. A novel formula to correct this underestimation was applied: add 50 µmol/L to the measured TcB value and use 70% of the TSB phototherapy treatment threshold. Using this formula, blood draws were reduced by 40% and there was minimal risk of missing infants <32 weeks GA with significant indirect hyperbilirubinemia (84).

In summary, TcB measurements have proved useful for screening infants ≥35 weeks GA for hyperbilirubinemia. Several recent studies have also demonstrated the utility of TcB as a screening tool for infants >28 weeks GA, further reducing the need for frequent blood draws (83,85-87). Attention should be given to the brand of bilirubinometer used as some correlate better with TSB levels; for example, evidence suggests that the BiliCheck^® and Minolta-JM 103^® perform better than the BiliMed^® device (88).

The Bilistick System, a POC method for measuring TSB level in whole blood (capillary or venous) was recently developed for low-resource countries (89-91). The method involves inserting a Bilistick Test Strip into the Bilistick Reader followed by loading a small drop of blood onto it. The test can be performed at home by trained staff and the turn-over time is 2 minutes. It was recently evaluated for diagnostic performance against TSB measured by laboratory method in a large number of infants from Egypt, Indonesia, Vietnam, and Nigeria and was found to have 92.5% positive predictive value and 92.8% negative predictive value (89). The screening performance is also comparable to laboratory TSB but generally underestimates laboratory measured TSB levels (90). In a study involving newborn infants from India, Bilistick was accurate only in 54.5% infants in measuring TSB within ±2 mg/dL difference of TSB measured by spectrophotometry (91). More studies are required to validate its screening and diagnostic performance in additional racial and ethnic groups.

Smartphone applications for bilirubin measurement

Emerging evidence indicates that smartphone can be used for measuring infants with jaundice. Some of these smart phone techniques require further refinement and are not yet ready for clinical use (92). The BiliCam app is a fairly new technology that is capable of analyzing digital images of newborns using a smartphone, such as the iPhones. The app is designed to obtain images of the skin overlying the infant’s sternum in a standardized way and then transmits the image data to a computer server via the Internet for analysis (67). As described by Taylor et al., a color calibration card (6 cm ×6 cm modified Macbeth Color Checker in the shape of a hollow square) is adhered to the newborn’s sternum and used in the process of collecting the BiliCam images. The calibration cards help account for variations in lighting and facilitate both image capture and data extraction. The cards are printed on specially coated paper to help reduce glare and the color accuracy is checked during the printing process to ensure stability between batches. When initiating the app, a red square appears on the smartphone screen. When the square is aligned with the color calibration card and lighting is adequate, the app automatically captures images from the smartphone camera both with and without a flash. Flash and non-flash images are obtained at three distances from the newborn, totaling six images, and are then sent to the computer server. This process of obtaining photos takes approximately less than one minute. This method of estimating bilirubin values in newborns ≥35 weeks gestation and <7 days of life was found to have similar accuracy to that of TcB measurements in the study conducted by Taylor et al. (67). Of note, Asian American neonates showed less of a correlation between BiliCam bilirubin and TSB measurements. BiliCam was highly sensitive in identifying newborns with a TSB level of ≥17 mg/dL. Therefore, using a threshold value of 13 mg/dL to define a positive BiliCam result could eliminate unnecessary blood draws for the majority of infants screened. The overall conclusion is that BiliCam, though it does not have adequate accuracy to serve as a solitary method for assessing jaundice in newborns, is a comparable screening device to TcB meters when determining which neonates require a TSB level (67). Though this technology is inexpensive and widely available, it is not validated in infants <35 weeks GA.

Recently, a novel smartphone method to screen for neonatal jaundice by imaging the sclera was proposed to reduce the confounding effect of skin pigmentation and ambient light. The Scleral-Conjunctival Bilirubin (SCB) correlated well with TSB (r=0.75) in a small study involving thirty-seven infants and the results were comparable with transcutaneous bilirubinometers (93).

Direct methods of free bilirubin determination

Enzyme based methods

• Bilirubin oxidase methods. A technique using a bilirubin oxidase/fluorescein conjugate differentially assay B_f, albumin bound bilirubin, and conjugated bilirubin in serum. Fluorescence of the modified enzyme exhibits changes with time depending on the type and concentration of bilirubin. While this method is useful in obtaining a simultaneous estimate of the three types of bilirubin, it is not sufficiently accurate or sensitive to be used in B_f assays in clinical samples. Additionally, this method is affected by the presence of serum hemoglobin and lipid emulsion (17,94).
• Peroxidase method using UB analyzer. The method using an appropriate concentration of the peroxidase enzyme for serum TSB and B_f measurement was first introduced in 1974 by Jacobsen and Wennberg and is currently the most commonly used method for Bf measurement (17). Bf and not bound bilirubin react to peroxidase and therefore horse radish peroxidase catalyzed oxidation rate of Bf derived from the time course of the diminishing bilirubin color is used to determine the concentration of Bf in the serum (17). An FDA approved standardized and dedicated spectrophotometer (UB-A1 Analyzer, Arrows Co Ltd) for B_f measurement using the peroxidase method is widely used for clinical research (25). In the original peroxidase method, a 42-fold dilution with phosphate buffer and a horseradish peroxidase reagent is made to the serum sample to measure B_f. The bilirubin bound to albumin is protected from oxidation. The rate of dissociation of the bound complexes must be significantly faster than the rate of bilirubin oxidation otherwise it would measure steady state B_f which is well below the equilibrium B_f. This underestimation of B_f can be resolved by measuring B_f at 2 or more peroxidase concentrations, typically using half the initial concentration of peroxidase (25,95). Then, both automated readouts of steady state B_f are used to derive the final equilibrium of B_f using a specific algorithm. The major limitation is that the sample dilution alters the intrinsic bilirubin binding properties (25,95). The apparent K for the albumin binding of bilirubin increases with sample dilution. The K increases significantly below albumin concentrations of about 0.6 g/dL most likely due to the dissociation of albumin oligomers that bind bilirubin less strongly than the albumin monomer. Thus, there is an apparent increase in available binding sites leading to the decrease in B_f. The sample dilution may also attenuate the effects of weak bilirubin binding competitors. Thus, it would be critical to use minimal sample dilution when evaluating bilirubin displacing effects of drugs. Despite these limitations, B_f measured using modified peroxidase method correlates directly and significantly with B_f measured at minimal sample dilution (25). Furthermore, numerous clinical studies in preterm and term infants have demonstrated that B_f measured using the modified peroxidase method is a more sensitive and specific predictor of neurotoxicity than TSB and/or the BAMR (Shown in Table 2). In Japan, the peroxidase method using a UB analyzer is routinely used to measure B_f for the management of unconjugated hyperbilirubinemia in preterm and term infants (96).
• Peroxidase method using zone fluidics. The Global FIA mini-Flo Pro also uses a horseradish peroxidase/glucose oxidase assay to measure serum B_f. Additionally, this method uses a minimally diluted sample compared to the UB analyzer (17). Signals measured by the spectrophotometer within the analyzer go directly into the Zone Fluidics software, which calculates the B_f concentration based on measurements at three different HRP/GO concentrations (97). “Zone stacks” are created for analyzing B_f concentration by aspirating an air bubble followed by 8 µL of sample, 4 µL of R3 (phosphate buffer with glucose and hydrogen peroxide), 4 µL of R2+R1 (HRP/GO enzyme and phosphate buffer, respectively), and lastly another air bubble; they are then transported to the spectrometer for analysis. The small sample dilution and processing of this technique contribute to a more precise measurement of B_f. Compared to the UB analyzer, this method is time consuming and often difficult because the enzyme dilution used depends on the expected B_f concentration of the sample. Other limitations include difficulty with standardization of the enzyme activity and stability of the prepared enzyme reagent. As with other binding assays, there is also possible interference with B_f measurement by conjugated bilirubin and photoisomers. However, this method is useful to study the bilirubin displacement effect of medications because of minimally diluted samples required to measure B_f (17). Van der Schoor et al. using zone fluidics reported that B_f levels vary considerably in preterm infants ≤32 weeks during the first postnatal week. They found that maximum B_f levels of 50 nmol/L occurred on day 4 and were higher in males (98). To date, there have been no BIND outcome studies reported using this instrumentation.

Fluorescent based methods

• Fluorometric method. A fluorometric assay utilizes fluorescently labeled fatty acid binding mutants (BL22) as probes that have a high specificity and high sensitivity for B_f. Acrylodan is the fluorophore that gives the probe its fluorescence. Bilirubin quenches acrylodan fluorescence by resonance energy transfer and the absorbance of bilirubin overlaps with the emission of acrylodan. The probe’s excitation wavelength is 375 nm and the emission wavelength of interest is 550 nm. This specifically chosen protein probe specifically binds to bilirubin and is insensitive to FFA and other metabolites found in serum (17). This method has been modified numerous times over the years. In the most updated version, B_f is measured using 5 µL of plasma in a disposable cartridge that contains the B_f sensor. The sensor comprises of a fatty acid binding protein labelled with a near infrared fluorophore that emits at 700 nm plus a second protein labeled with a fluorophore that emits at 820 nm. Upon binding B_f, the fluorescence at 700 nm is quenched. The degree of quenching of the 700 nm/820 nm ratios is used to calculate the B_f concentration. In a preliminary investigation in late preterm and term neonates during the first postnatal week, B_f measured using this method was found to have good correlation with the B_f measured by the UB analyzer using the peroxidase method (99). However, this method has not been compared with the modified peroxidase method in premature infants. Furthermore, there have been no BIND outcome studies reported using this instrumentation.
• Fluorescent protein-based detection. UnaG, a fluorescent protein from Japanese eel muscle that specifically binds to unconjugated bilirubin was studied by Iwatani et al. (100). This was the first large-scale clinical study demonstrating the applicability of this form of B_f measurement in newborn serum samples, requiring only a small volume of blood. UnaG-His-FLAG is generated by adding a polypeptide flag to the protein. A specific reaction mixture is made consisting of UnaG solution and diluted bilirubin solution to which the newborn serum or whole blood is added. The fluorescence intensity of the diluted sample is measured and B_f concentrations are determined from a standard calibration curve. The concentration of B_f measured by this method correlates strongly with those obtained by the conventional bilirubin oxidase method. Furthermore, performance of the UnaG method was unaffected by phototherapy and the presence of serum hemoglobin and lipid emulsion (100). This method has not yet been validated against the BIND outcome measures.

Potentiometry method

A novel method of B_f measurement in the serum was recently reported using electrolytic chemistry or potentiometry, which is primarily a measurement of electrical potential using an ion-specific electrode for chemical analysis (101). In this method, the potentiometric sensor has a polymeric ion-selective membrane and selectively measures “free ionic bilirubin” in the presence of other anions such as chloride, phosphate, pyruvate, lactate and others normally present in serum. The linear response range of the sensor (1.0 mM to 0.10 μM bilirubin, measured in a sodium phosphate buffer with pH 8.6) covers the clinically-relevant concentration of bilirubin in serum (5–500 μM). The components of the sensor were embedded in a paper-based device to provide a sensor that is disposable and suitable for POC. The method requires only 15 μL of sample and the analysis can be performed in 1 to 2 minutes. This method has not yet been studied in neonates (101).

Indirect method of free bilirubin measurement

Unconjugated B_f is essentially non-fluorescent in most solvents. The fluorescence of unconjugated B_f increases by binding to its native binding site on albumin. The fluorometric method that makes use of bound bilirubin’s natural fluorescence is being redeveloped for a POC system that uses <100 µL of whole blood and precludes the requirement for separation of serum or dilution of the specimen. The ‘B’ concentration {Eq. [1]} is close to TSB since the B_f concentration is much smaller until albumin binding is saturated. The reserve binding capacity (R) can be measured by adding excess bilirubin to the blood, resulting in an increase in fluorescence due to newly bound bilirubin. This method measures bilirubin binding capacity. The hematofluorometry results for bilirubin binding capacity and a calculated B_f are shown to be in good agreement with other more complex methods, including the peroxidase method. However, this POC method has not been validated in any clinical studies of BIND (17,32).

Summary

In conclusion, infants with excessive bilirubin production (indexed by TSB) or poor plasma bilirubin binding (indexed by B_f) have an increased risk of BIND. Both TSB and B_f measurement contribute critical information about the risk of BIND. Despite ample evidence for the usefulness of bilirubin binding measurement in assessing the risk for BIND, TSB remains the primary parameter used worldwide, except for Japan where both TSB and B_f are used successfully, to guide treatment with phototherapy and or exchange transfusion (27,96). The direct measurement of B_f by the modified peroxidase method provides the best risk assessment of BIND. Based on available methods, it is prudent to establish B_f population parameters at current threshold TSB levels routinely used to manage neonates with phototherapy and/or exchange transfusion for quantifying bilirubin binding in neonates. Such information will likely provide important additional information about the risk of BIND and need for intervention. Additionally, direct methods of B_f measurement using POC instruments are urgently needed for timely intervention and prevention of BIND in high-risk neonates. The newer POC instruments of B_f measurement and binding capacity appear promising, but will require to be standardized and validated for its usefulness in predicting BIND in premature and term neonates.

Acknowledgments

Funding: The work was supported by NIH R21 HD078744, NIH R21 DE021161 and NIH R03HD61084.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editors (David K. Stevenson and Ronald J Wong) for the series “Neonatal Jaundice” published in Pediatric Medicine. The article has undergone external peer review.

Reporting Checklist: The author has completed the Narrative Review reporting checklist. Available at https://dx.doi.org/10.21037/pm-21-15

Peer Review File: Available at https://dx.doi.org/10.21037/pm-21-15.

Conflicts of Interest: The author has completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/pm-21-15). The series “Neonatal Jaundice” was commissioned by the editorial office without any funding or sponsorship. The evidence provided for bilirubin binding measurement was supported by NIH grants. The author has no other conflicts of interest to declare.

Ethical Statement: The author is accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
